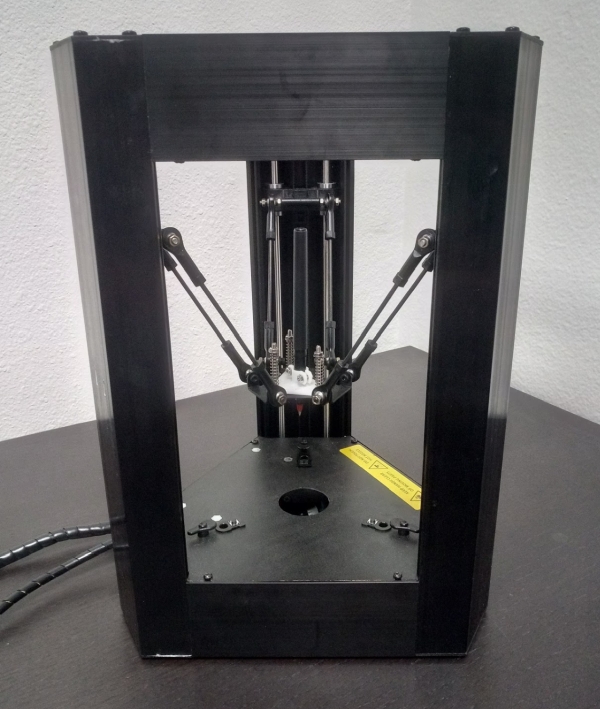

RMDELTA01R1 Linear Delta Robot (Educational)

This basic 3-axis educational delta robot is based on a simplified Monoprice 3d printer frame combined with our IB01R1 interface board. The design targets the lowest-cost approach to an educational platform that showcases 3-axis coordinated delta-robot motion. The system is capable of learning motion-sequence "Macros" via user-defined waypoints, and alternatively can operate in manual-control mode with on-the-fly changes based on user input via keyboard jog buttons or a 3DConnexion space mouse. With our upcoming smart-camera and conveyor modules, we are planning to configure this robotic module along with others for more advanced vision-based sorting and pick-and-place behaviors. Please see videos for further examples of behavior and performance.

IB01R1 Multi-Axis Coordinated motion Interface Board for BBB

RMDELTA01R1 Features

  • Low cost 3-axis linear delta system based on Monoprice Mini Delta 3D printer
  • Uses C.Robotics IB01R1 and BeagleBone Black (RevC) for control
  • Coordinated motion, both pre-planned and on-the fly
  • Includes several basic and more-advanced functionalities

Downloads

For additional information, please inquire info@capellarobotics.com
